Description
Energy Saving Design
AstroCel II filters are ideal for demanding operating conditions in critical applications. A longer service life and lower energy consumption means fewer change-outs and lower operating costs.
Unique construction
Astrocel II filters are available with media ribbon or hot melt separators to meet the requirements of all mini-pleat applications. Pack depths are available between 2“– 4” to optimize energy savings by minimizing total ownership costs.
Range of Efficiencies
Efficiencies from 99.99% on 0.3 micrometer to 99.9995% on 0.1 – 0.2 micrometer particles. Custom efficiencies are available.
| EN1822 | H13 – U17 |
| ISO 29463 | ISO 35 H – ISO 75 U |
| Filter Depth (mm) | Various |
| Media Type | Fibreglass |
| Frame Material | Aluminium |
| Separator Style | Hot Melt |
| Gasket Material (Standard) | PU Gel |
| Gasket Material (Optional) | Silicone Gel |
| Gasket Position (Standard) | Downstream |

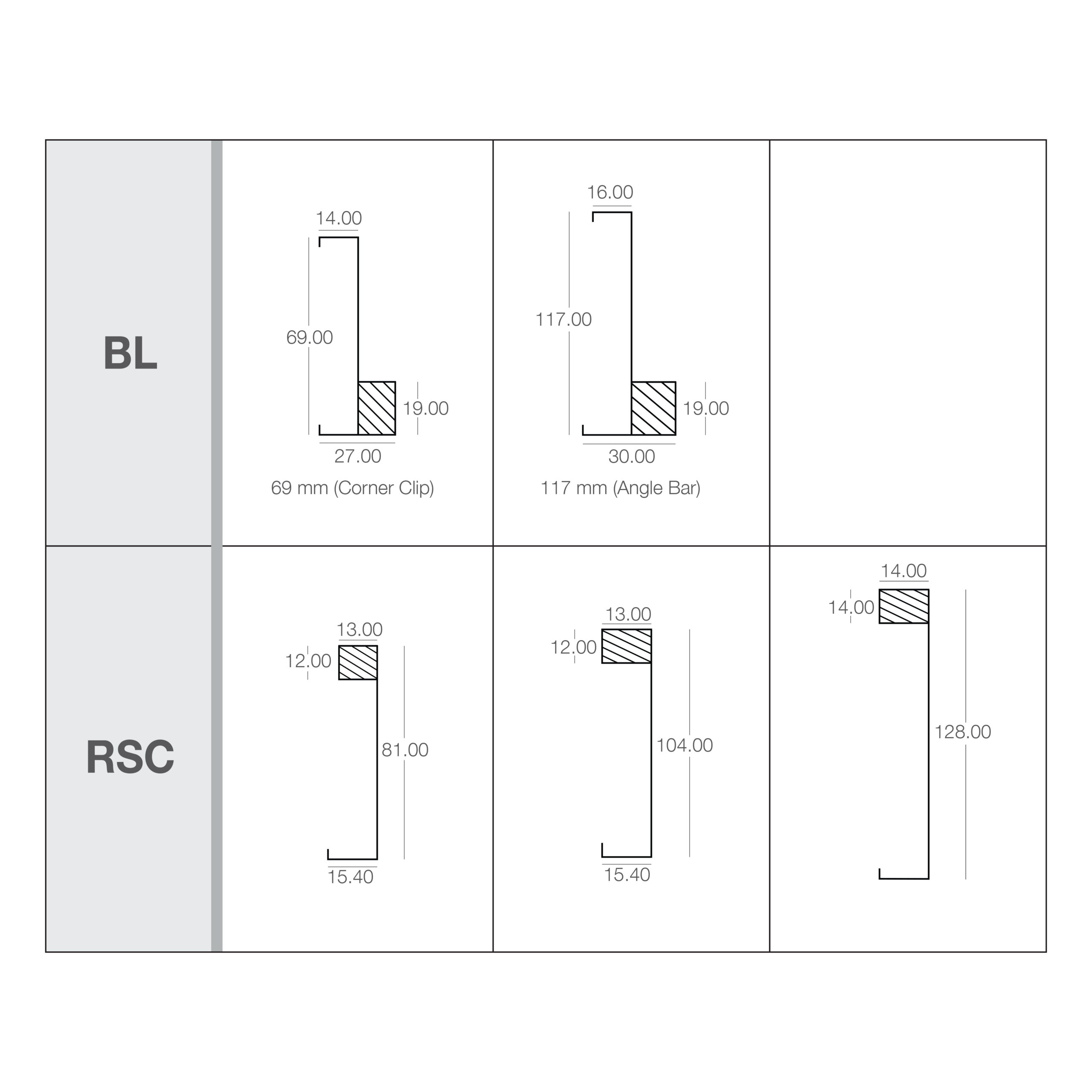

| Gasket Position (Optional) | Downstream (BL), Upstream (RSC) |
| Faceguard | Both Sides |
| Special Size Available | Yes |
| Antimicrobial Available | No |
| Recommended Final Resistance | 500 Pa |
| Max Operating Temperature | 70º C |
| Air Filtration Certification | UL 900, FM 4920 |
