AstroCel® II (Knife Edge)

  • Individually tested for certified performance
  • Reduces operating costs with lowest possible pressure drop from microglass media
  •  Available in a range of efficiencies
  •  Lightweight and compact
Categories: ,
Description
INDUSTRIES

Typical applications

Biopharmaceutical
Healthcare
Microelectronics

Benefits & Features

Individually scan tested for certified performance. Design to operate with low pressure drop with a wide range of efficiency to choose from. It is suitable for direct install onto the gel truck cleanroom ceiling grid. Lightweight and compact design.

Specifications

EN1822 H13-U17

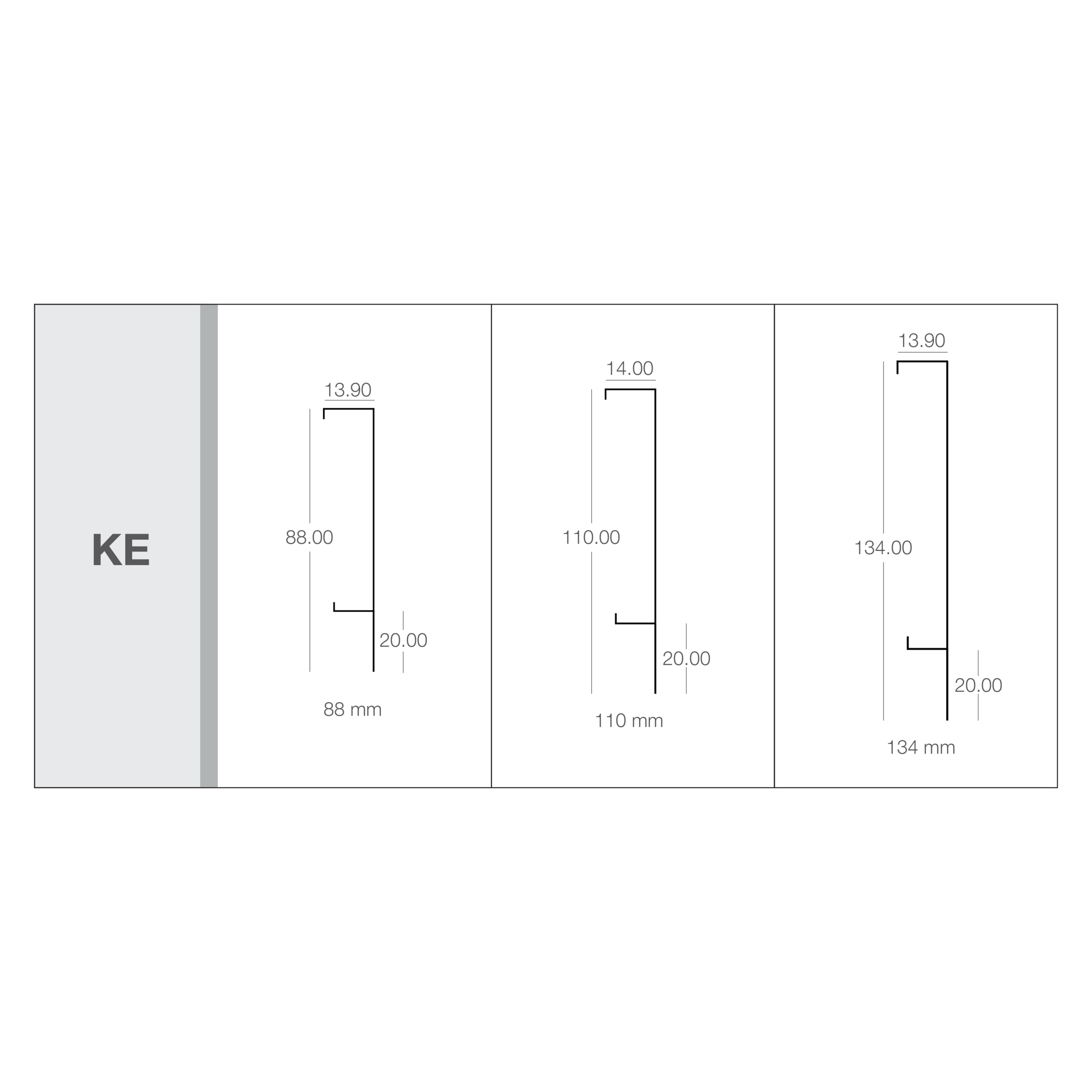

Filter Depth (mm) Various
Media Type Fibreglass
Frame Material Aluminium
Separator Style Hot Melt
Faceguard Both Sides
Special Size Available Yes
Antimicrobial Available No
Recommended Final Resistance 500 Pa
Max Operating Temperature 70º C
Air Filtration Certification UL 900, FM 4920
Download Brochure

or
Enquire Now
