Typical applications
Airports
Healthcare
Hospitality
Industrial plant offices and laboratories
Microelectronics
Improve Indoor Air Quality and Odor Removal
VariSorb VXL features a dual-layer media with particulate and gaseous filtration capabilities, designed to remove indoor and outdoor fine particulates and gases, including VOCs, SOx, NOx, and Ozone. This combination provides superior odour control and significantly improves overall air quality in HVAC systems.

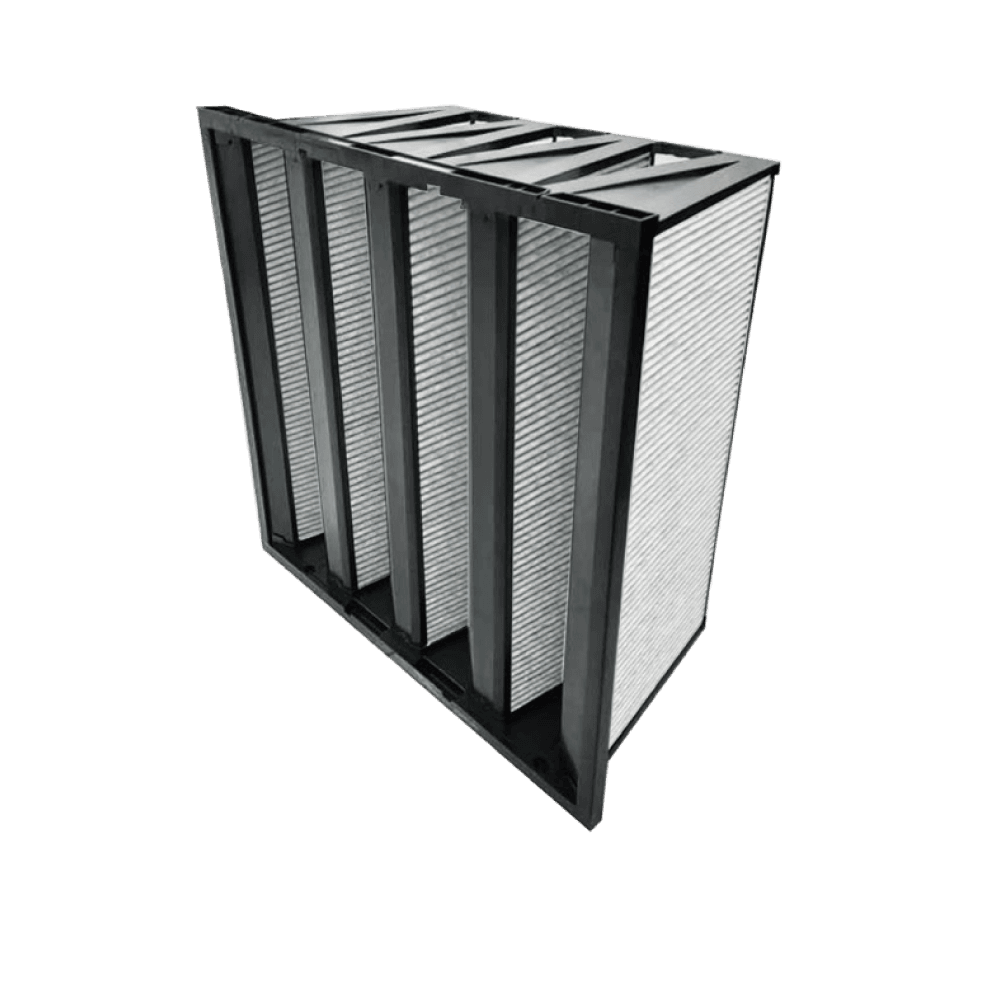

Construction
VariSorb VXL filters consist of filter elements assembled in a V-bank configuration. The header and cell sides provide a sturdy construction that resists damage during shipping, handling, and operation. The absence of metal components makes VariSorb VXL filters fully incinerable.
Additional Features
VariSorb VXL filters replace existing HVAC filters of the same type with no changes required for frames or latches. They are packed and sealed in individual polyethylene bags to preserve capacity and cleanliness.
Media
The VariSorb VXL filter features a pleated media comprised of very high activity virgin carbon particles bonded into a three-dimensional network of bicomponent fibres that maximizes the exposure of the sorbent to gas. The very small carbon granules, unlike traditional granular bed chemical filters, provide a granular microstructure that ensures a much higher effective area per pound of media, resulting in a high spontaneity of adsorption. Combined with the dense packing of the microstructure, this creates a tortuous path for the contaminant, resulting in a high yield for the filter. Dusting is nearly eliminated, and pressure drop is minimized. The carbon media is laminated to a synthetic particulate filtration layer, which provides a high level of removal efficiency at minimal resistance.
| EN 779 | F8, F9 |
| ASHRAE 52.2 | MERV 15 |
| Filter Depth (mm) | 304 |
| Media Type | Carbon, Impregnated Carbon |
| Frame Material | Plastic |
| Special Size Available | No |
| Header Type | Single Header |
| Recommended Final Resistance | 375 Pa |
| Max Operating Temperature | 51ºC |
| Target Gas | VOC, Acid, Base |
