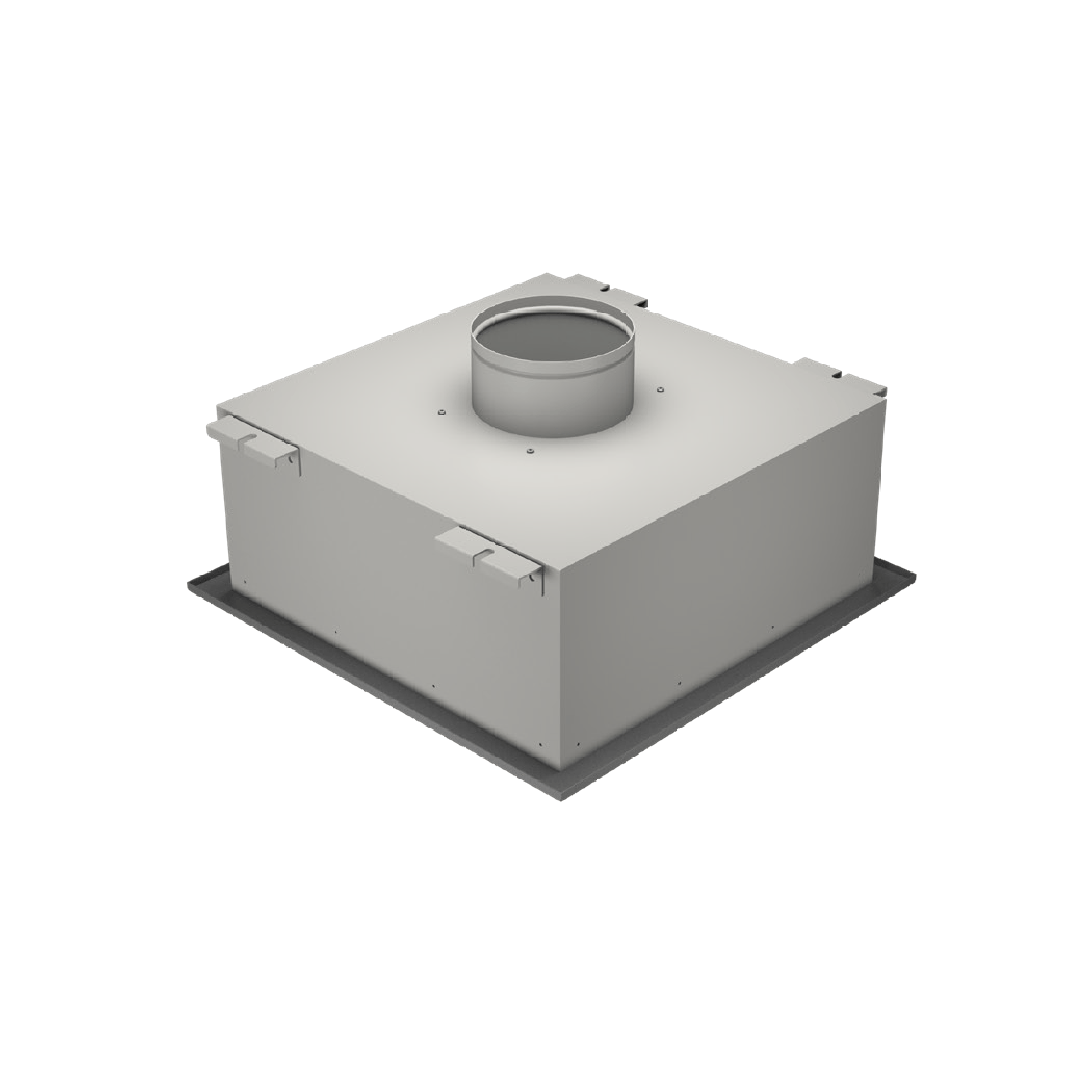

AstroHood CS is a HEPA filter ceiling module built for cleanroom environments. Its flexibility comes from a perimeter trim that can be installed on-site, allowing easy adaptation to various ceilings. With features like room-side maintenance, leak-free construction, and consistent clean air delivery, AstroHood CS is engineered for long-term reliability in demanding spaces.
| Housing Depth (mm) | 265, 365, 465, 565 |
| Housing Material (Standard) | Galvanised Iron with Powder Coated |
| Housing Material (Optional) | Stainless Steel |
| Perimeter Trim (Standard) | Stainless Steel |
| Perimeter Trim (Optional) | Galvanised Iron with Powder Coated |
| Supply Air Grille Type (Standard) | Perforated |
| Supply Air Grille Type (Optional) | Swirl |
| Supply Air Grille Material (Standard) | Stainless Steel |
| Supply Air Grille Material (Optional) | Galvanised Iron with Powder Coated |
| Inlet Diffuser (Standard) | Fixed Diffuser (Top Collar) None (Side Collar) |
| Inlet Damper (Optional) | Adjustable Radial Damper, Room Side Operable Twin Blade Butterfly Damper* |
| Inlet Damper Material (Standard) | Galvanised Iron with Powder Coated |
| Inlet Damper Material (Optional) | Stainless Steel |
| Aerosol Injection Port | Yes |
| Upstream Concentration / Pressure Port | Yes |
| Special Size Available | Yes |
*Inlet Damper Shape Selection : Round / Square / Rectangle.
| EN1822 | H14 – U17 |
| ISO 29463 | ISO 45 H – ISO 75 U |
| Filter Depth (mm) | 117 |
| Media Type | Fibreglass, eFRM |
| Frame Material | Aluminium |
| Separator Style | Hot Melt |
| Gasket Material (Standard) | Gel |
| Gasket Position | Downstream (BL) |
| Faceguard Position | Both Sides |
| Antimicrobial Available | Optional |
| Recommended Final Resistance | 500 Pa |
| Max Operating Temperature | 70°C |
| UL 900 Certificate | Optional |
