AAF > Products > Housing & Equipment > Cleanroom Module > AstroHood TM

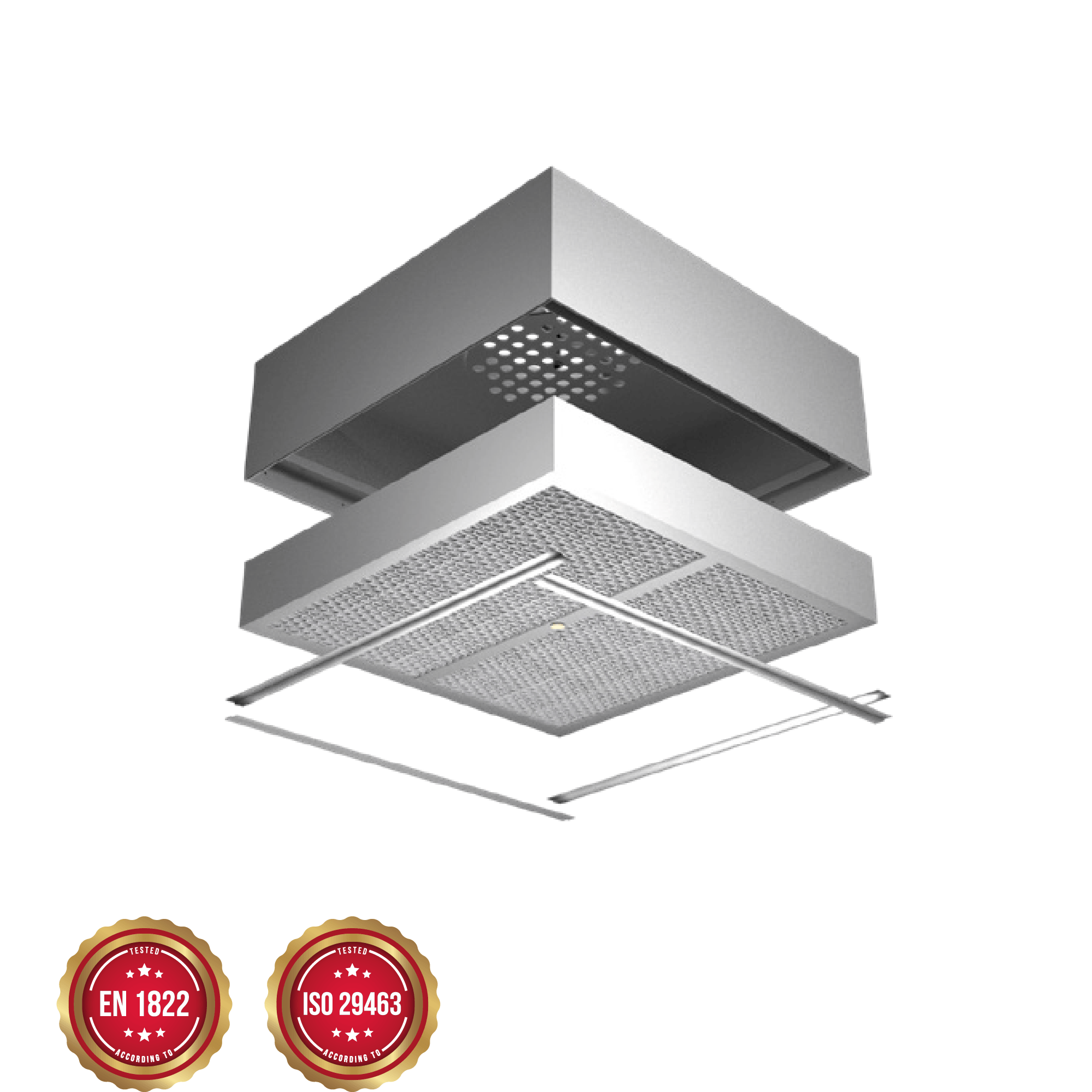

AstroHood TM - Image 1

AstroHood TM

Categories: ,
Share this:
Description
INDUSTRIES

Typical applications

Airports
Biotechnology
Food & Beverage
Health Care
Microelectronics
Pharmaceutica

Benefits & Features

AstroHood TM is a HEPA ceiling module designed to house a room side replaceable filter for optimum filter performance. Its low profile and lightweight housing allows for versatile and effortless installation.

Housing Specifications

Inlet Diffuser Adjustable Distribution Plate
Top Material (Standard) Galvalume
Top Material (Optional) Aluminium, Stainless Steel
Special Size Available Yes

Filter Specifications

EN1822 H13,H14
ISO 29463 ISO 35 H, ISO 45 H
Filter Depth (mm) 152
Media Type Fibreglass, ePTFE, eFRM
Frame Material Aluminium
Separator Style Hot Melt
Faceguard Position Downstream
Center Divider Test Port Yes
Inlet Collar (mm) 250, 300
Antimicrobial Available Optional
Recommended Final Resistance 500 Pa
Max Operating Temperature 70ºC
UL 900 Certificate Optional
FM 4920 Certificate Optional
