Ideal Odour Control with Particulate Filtration
VariSorb® PF is a plastic frame filter with carbon pleated media, designed to provide odour and particulate control where light to moderate concentration conditions exist. The media of VariSorb® PF filter combines polymer fibre with micro pores activated carbon for high efficiency removal. The polymer substrate filters particulate matter, while the chemical impregnated activated carbon filters the gaseous and odorous contaminants such as SOx and NOx.
Totally Unitized Construction Offers Superior Strength
The frame of the VariSorb® PF filter is constructed of high-impact polystyrene with corrosion resistant characteristics. The design, which encloses a fixed media pack, creates a rugged filter that resists damage during shipping, handling, and during operation. The absence of any metal component makes VariSorb® PF filter fully incinerable. No housings or ductwork modifications are required, it can directly replace any standard 2″ pre-filters for all kinds of air filtration application.
|ISO 16890||ePM10 55%|
|Filter Depth (mm)||48|
|Media Type||Impregnated Carbon|

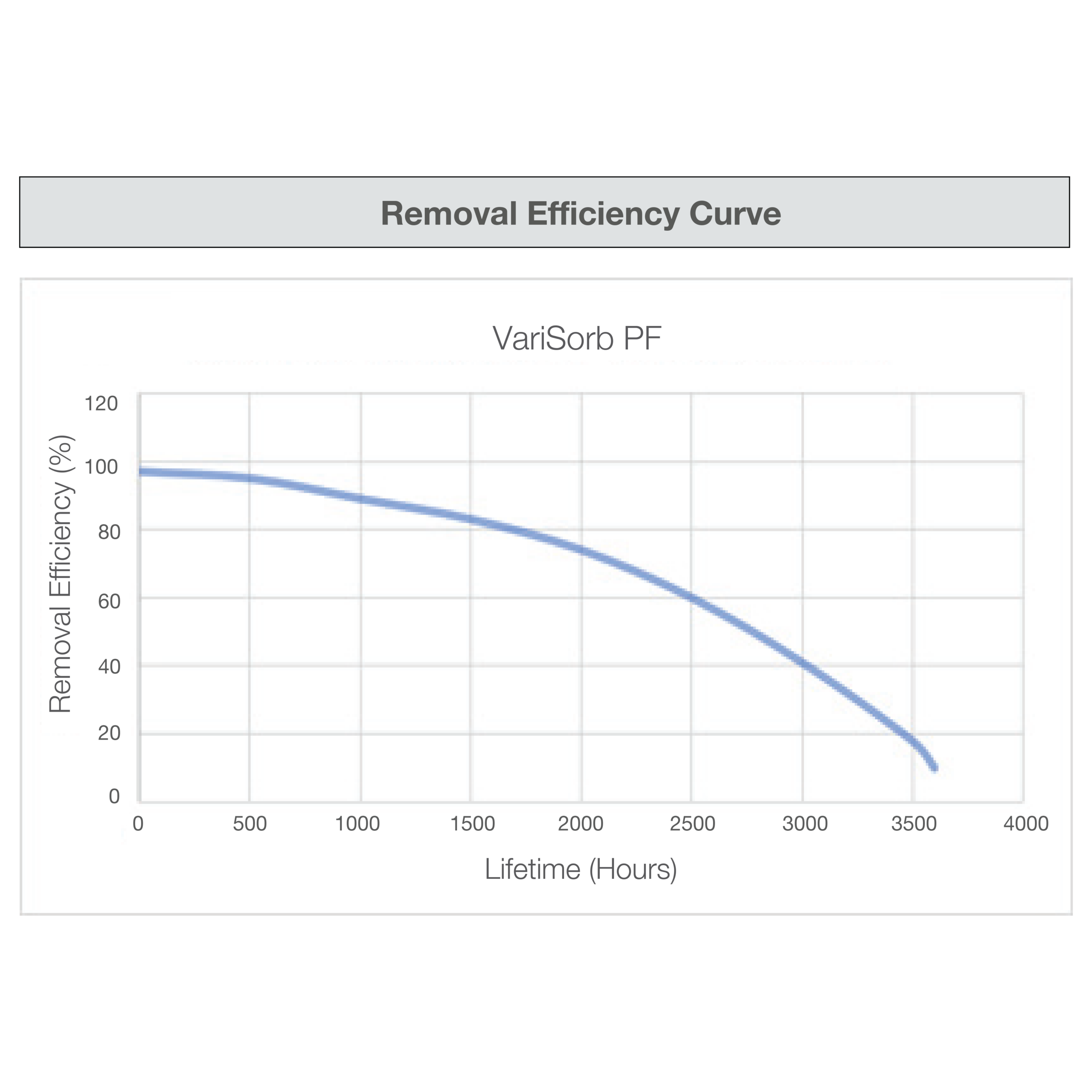

|Gas Removal Initial Efficiency||> 95%|

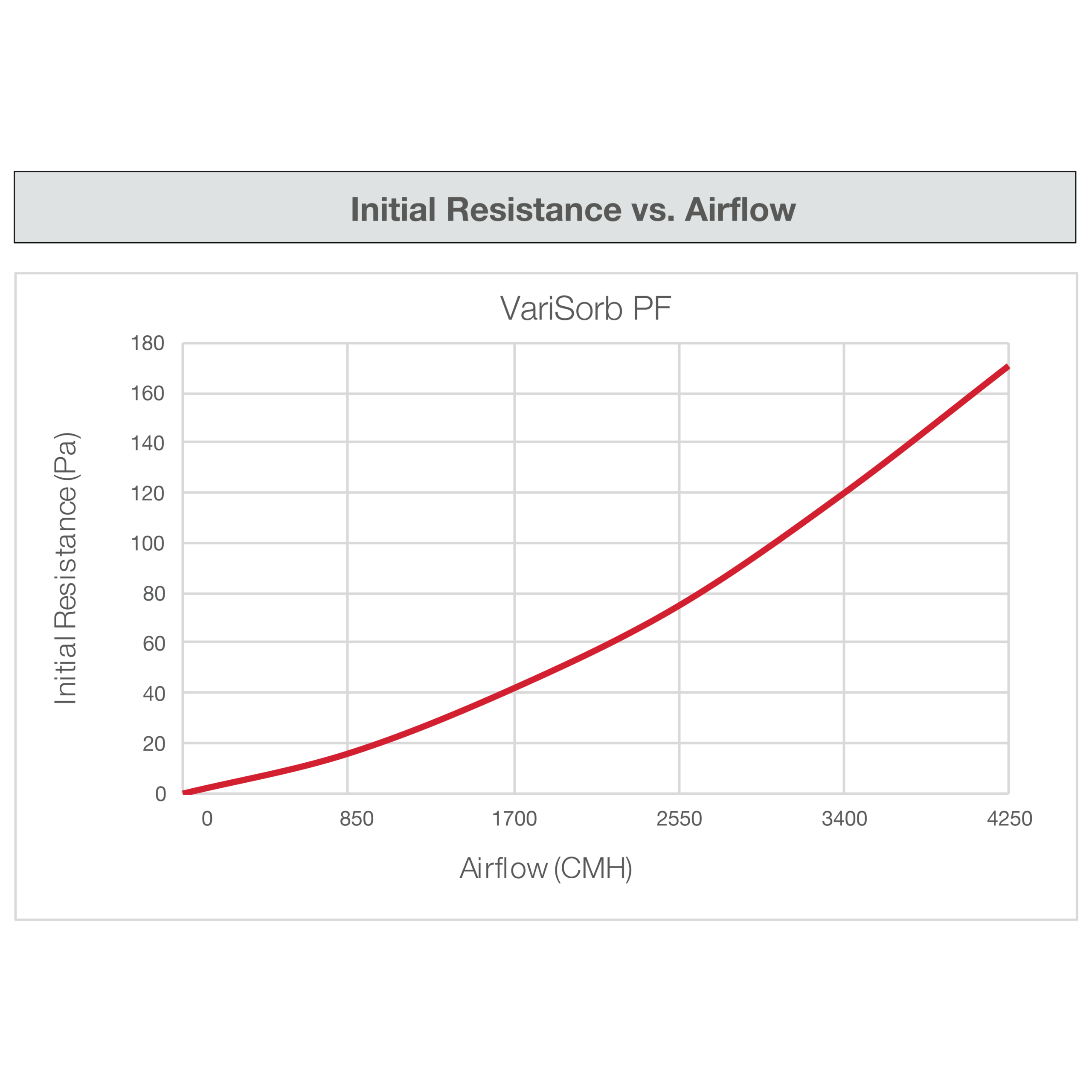

|Recommended Filter Resistance||250Pa|
|Max Operating Temperature||70°C (158°F)|
|CTC||Single Header (25mm)|
|Recommended Final Resistance||375 Pa|
|Max Operating Temperature||54°C|
|CTC||≥ 60 wt. %|
